Mitsubishi Air conditioner contractor Ductless & central AC

Mitsubishi Mr. Slim
full line-catalog

M-Series A Models
Ductless Heating and cooling / Cooling
only, Inverter driven compressor

12,000 Btu vertical Air handler
PVA-A12AA7 & PUY-A12NKA7(-BS)
18,000 Btu vertical Air handler
PVA-A18AA7 & PUY-A18NKA7(-BS)
12,000 Btu ducted concealed
PEAD-A12AA7 & PUY-A12NKA7(-BS)

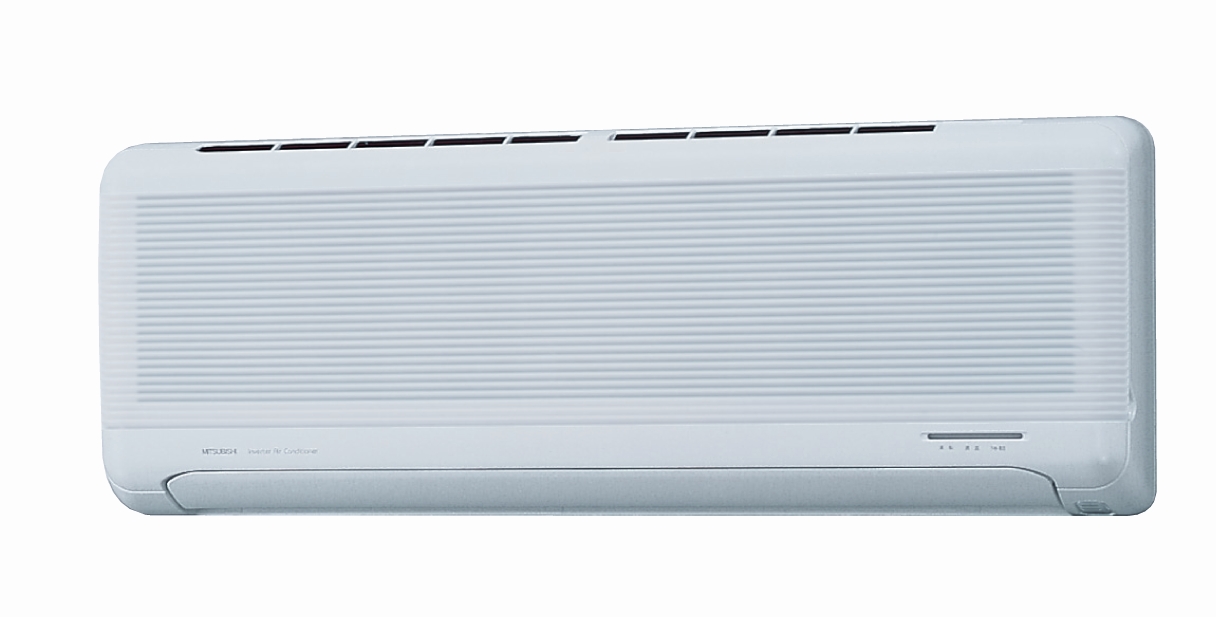

12,000 Btu wall mounted
PKA-A12HA7 & PUY-A12NKA7(-BS)
12,000 Btu ceiling-cassette
PLA-A12EA7 & PUY-A12NKA7(-BS)
12,000 Btu vertical Air handler
PVA-A12AA7 & PUZ-A12NKA7(-BS)
12,000 Btu ducte conceale
PEAD-A12AA7 & PUZ-A12NKA7(-BS)
12,000 Btu wall mounted
PKA-A12HA7 & PUZ-A12NKA7(-BS)
12,000 Btu ceiling-cassette
PLA-A12EA7 & PUZ-A12NKA7(-BS)
18,000 Btu ducted concealed
PEAD-A18AA7 & PUY-A18NKA7
18,000 Btu wall mounted
PKA-A18HA7 & PUY-A18NKA7
18,000 Btu ceiling-cassette
PLA-A18EA7 & PUY-A18NKA7
18,000 ducted concealed
PEAD-A18AA7 & PUZ-A18NKA7
18,000 Btu wall mounted
PKA-A18HA7 & PUZ-A18NKA7
18,000 Btu ceiling cassette
PLA-A18EA7 & PUZ-A18NKA7
18,000 Btu vertical air handler
PVA-A18AA7 & PUZ-A18NKA7

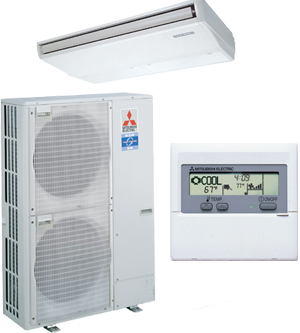

PC-Series Ceiling Suspended A/C and Heat Pumps
Four ceiling-suspended air conditioning models are
available from 24,000 to 42,000 Btu/h. Four heat pump
(HP) models start at 26,000 and range up to 45,000 Btu/h

Mr. Slim PC series ductless AC outdoor unit

P Series Hyper- Heating Inverter
All Year around performance, Wall Mounted
and Ceiling recessed, Super low ambient up
to -13 ° in heating mode

Mr. Slim PC series ductless outdoor unit 42,000 Btu

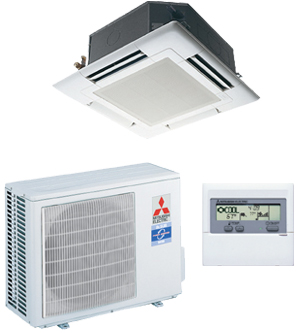

Mr. Slim P series ductless ceiing cassette unit

PEA-series ducted AC available in cooling only or
heat pump heating & cooling
Model ranging from 12,000 Btu - 18,000 Btu

Mitsubishi CITY MULTI VRF catalog

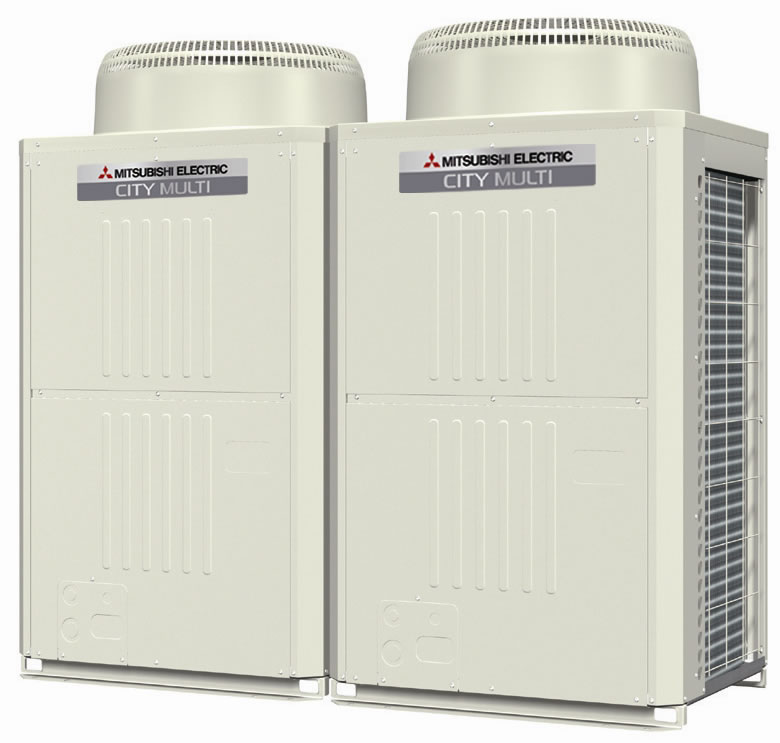

Mitsubishi City Multi VRFZ twin outdoor units

CITY MULTI
VRFZ full-line catalog

S-Series Solutions for the home or
small office

The CITY MULTI S-Series offers all the
features and benefits of Mitsubishi
large commercial CITY MULTI
Y-Series. The S-Series
Solution features a single-phase
outdoor unit with Variable
Refrigerant Flow Zoning (VRFZ)
technology and CITY MULTI
Controls Network (CMCN) to cool or
heat all zones with a
variety of indoor unit styles.

Mitsubishi CITY MULTI s-series

Commercial

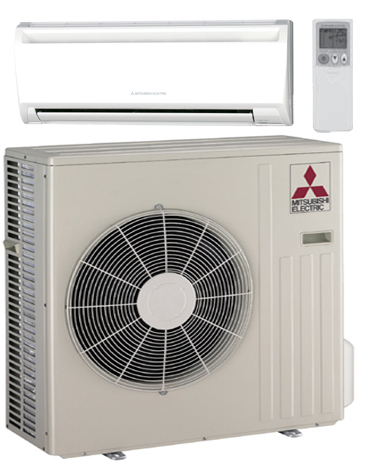

Mitsubishi Ductless split Air conditioner systems perfect fit for
residential and commercial applications and used extensively in
schools, universities, hospitals, nursing homes, hotels, office
buildings, data rooms, and churches, additional a multitude for
other light commercial applications.

A ductless heating and cooling systems can fit almost in any
application, they small in size big in performance, Efficient, Quite,
Secure. No duct work needed, fully customized HVAC systems
providing comfort conditioning inside homes, offices, and buildings.

Easy installation takes less effort and time

only 3-4 inches opening in the wall or ceiling
required, connect the indoor (Air Handler) to outdoor
(Condenser) unit by Refrigerant lines and electric
power. Unlike complicated ducted central AC,
Mitsubishi systems are design for quick and easy
installation; the indoor unit (air handler) takes in
supply air from the room through its small grill and
blows the fresh air back into the room Installation
process on regular condition on average takes less
than one day.

Mr. Slim efficient, quite, energy saver

the perfect solution for almost any application, the
heat pump allow heating and air conditioning
from the same system, highly efficient results in
lower utility cost.
Mr. Slim ductless systems installed especially in
existing buildings because there is no ductwork to run
in addition Mitsubishi systems can be installed in
New Home Office schools, Nursing home, Hospitals,
Restaurants, Hotels and Data rooms.

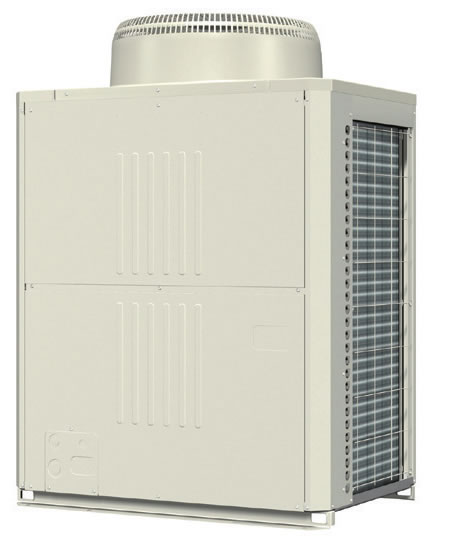

CITY MULTI VRF
(Variable Refrigerant Flow Zoning)
Ductless or ducted system for commercial and residential
application

Design flexibility

CITY MULTI VRF systems provide engineers the flexibility to
meet their application designs, ranging from the simple to the
complex. CITY MULTI R2 and Y-Series systems, available in
208/230V or 460V, design for up to 50 zones per system.
The W-Series system enable connection up to sixteen zones and
the S-Series system can be configured for up to eight zones.

The Hyper-Heating INVERTER (H2i™) have the capability to
connect with up to 24 indoor units.
Multiple CITY MULTI systems can be integrated into Mitsubishi
controls network to air condition and manage up to
2,000 zones from a single-networked PC using
Mitsubishi Electric furnished software.

Heat pumps - Heating and cooling
Heat recovery - Simultaneous heating and cooling operation
Hyper heating inverter H2i - 100% heating at 5 ºF, Operates up
to -13 ºF
Water-source - Simultaneous cool and heat or provide heat
pump operation
Outdoor units capacity - ranging from 7 Ton - 36 Ton,
208/230V & 460V/3
Indoor units capacity - ranging from 6,000 Btu - 96,000 Btu

Ductless or concealed
AC - Cooling only
Heat pumps - Heating & cooling, Hyper heating
Multi zone - Ranging from two to eight zones (residential)
Outdoor unit capacity - raging from 9,000 Btu - 48,000 Btu
Indoor units capacity - ranging from 6,000 Btu - 48,000 Btu
Power - 208/230V Single phase

Mitsubishi City Multi VRF

Commercial Central Air conditioners Ductless and
ducted, split systems / Heat pump / Heat recovery

Mr. Slim

Residential, light commercial split Air conditioners
Ductless or concealed, Heating and cooling / Heat Pump

PEAD-A24NA

PLA-A12, 18, 24BA

MSZ-GE06NA -   6,000 Btu
MSZ-GE09NA -   9,000 Btu
MSZ-FE09NA -    9,000 Btu
MSZ-GE12NA - 12,000 Btu
MSZ-FE12NA - 12,000 Bt u
MSZ-GE15NA - 15,000 Btu
MSZ-GE18NA - 18,000 Btu
MSZ-GA24NA - 24,000 Btu

Concealed indoor units

SEZ-KD09NA - 9,000 Btu
SEZ-KD12NA - 12,000 Btu
SEZ-KD15NA - 15,000 Btu
SEZ-KD18NA - 18,000 Btu

MFZ-KA09 - 9,000 Btu
MFZ-KA12 - 12,000 Btu
MFZ-KA18NA - 18K

Floor - standing

12, 18, & 24,000 Btu

Wall mounted indoor units

Ceiling cassette

Mitsubishi Mr. Slim MXZ-8B48NA eight-zone
Heat pump heating & cooling outdoor unit
enable to connect up to eight indoor units.
The inverter driven compressor provide
variable capacity control allows the systems
automatically adjust to the indoor units
capacities.

Unlike other multi-port system the MXZ-8B48A
outdoor unit required branch boxes to
connectup to eight indoor units.

The outdoor unit enables to control variety of
indoor unit’s type and capacities, wall, floor,
concealed ceiling and ceiling cassette.
Outdoor unit capacity is 48,000 Btu in cooling
and 54,000 Btu in heating, and can range from
a minimum 12,000 Btu up to 60,000 Btu in
heating mode.

The MXZ-8B48A allows for further flexibility
connected indoor units up to 130%
Maximum connectivity up to 70,200 Btu.

24,000 Btu

Ducted indoor unit

MXZ-8B48NA eight zone split system connections indoor units options

Mitsubishi M & P
Series

Mr. Slim MXZ-8B48NA 48,000 Btu eight zone

City Multi R2 &
Y Series

New MSZ-FE18NA Hyper heater

Mr. Slim
Hyper heater H2i Heat Pump (Heating & cooling)

18,000 Btu Wall-mounted ductless indoor unit
Efficiency 20.2 SEER
HSPF 10.3
EER 14.2
H2i Hyper heater capabilities
Inverter Driven compressor
Quite Operation

MSZ-FE18NA is a Hyper-Heating wall mounted indoor
unit, rated capacity of 27,000 Btu at 47˚ F produce 100%
heating at 5˚ F and 73% at minus -13˚ F.

Mr. Slim

24,000 Btu Wall mounted ductless indoor unit
Efficiency 19 SEER
HSPF 10
Cooling capacity range 8,200-31,400 Btu
Heating capacity range 7,500-36,900 Btu
Maximum heating capacity at 5˚ F 21,600 Btu
Inverter driven compressor
Quite Operation

The MS(Y) Z-GE24NA improved high efficiency,

system include Nano platinum and anti allergy Enzyme filter.

New Mr. Slim MS(Y)Z-GE24NA

Mitsubishi Product
Family Brochure

Mitsubishi Homeowner
brochure

City Multi VRF
technology

Indoor and Outdoor units

Ductless Dual Zone
wall Mounted

Mr Slim Outdoor
Unit

Mr Slim Outdoor
Unit MXZ3A30

Mr Slim Outdoor
Unit PK series

Mr Slim Outdoor
Unit PC series

Mr Slim eight zone
MXZ-8B48NA

City Multi H2i Series
Outdoor units

Mr. Slim ductless PK series outdoor unit

Concealed indoor unit

Ceiling cassette

Concealed indoor unit

Ducted indoor unit

Mitsubishi Mr Slim & City Multi contractor

www.pacificairconditioner.com

Pacific HVAC Air Conditioner
Tel: 201-266-0049
Email :service@pacificairconditioner.com

MITSUBISHI

Mr. Slim wall mounted MSZ-FE188A

Mitsubishi Ductless split Air conditioner

PACIFIC HVAC Air Conditioner specialized in ductless mini-split air
conditioning & het pumps systems provide professional installation
and HVAC services for all Mitsubishi Mr. Slim and City Multi Air
Conditioners both for residential and commercial applications,
making the ultimate comfort and convenience for any application. No
duct work or sheet metal is needed, no plumbing required,
numerous options to complement any decor, virtually unlimited
applications, advance technology quite operation, handy wireless
remote.

Air conditioner installation Mr.slim and City Multi
systems
Trouble shoot and AC repair
Heat pump & heat recovery repair
Wireless and wired control repair
System diagnoses and leaks repair
Ductless indoor unit freezing problem
Outdoor unit freezing coil
Indoor and outdoor motherboard repair or replace
Drain clogged repair
Fix Multi city network control
Diagnose and replace compressor
Indoor fan, outdoor fan replace
Motor replace
Repair piping leak and add refrigerant
Fix electrical problem
Fix Airflow problem
Cleaning indoor & outdoor coil
Annually Maintenance program
Extended warranty for all Mitsubishi Air
conditioner & heat pump system include City Multi

Mitsubishi Ductless Air conditioning;
Service, Installation, Repair, Maintenance

Mitsubishi ductless air conditioning, service, installation, ac repair

NY NJ Mitsubishi Air conditioner contractor | Ductless & central AC
Ductless Air conditioner Installation | AC repair | Service & Maintenance | City Multi VRF

HVAC contractor
Mr. Slim and City Multi
Located in Englewood, NJ 07631
Service Area: NY & NJ

Mitsubishi H2i, All year round comfort, heating down to -13 ºF. (additional information)

Mitsubishi h2i system provide heating and cooling in extreme low temperature conditions,
unlike standard split system heat pump that operate in heating mode up to 14 ºF.
These system provide heating down to -13˚ F outdoor ambient and produce up to 100%
heating capacity at 5˚ F.

The H2i advanced heating technology can heat a space efficiently and effectively even when
temperature outside are down to -13˚ F.
There is usually no need for back up heat or any supplement heat with this system.

I -see-sensor
the I-see sensor detects temperature variations in
hard to control ceiling or floor areas, and control the
Airflow up to a wide lateral angle for maximum comfort

Air conditioning installation
cost to install Mitsubishi Mini-split Single zone systems

Mitsubishi
Ductless Catalog

Mitsubishi P series
Catalog

Mitsubishi City
Multi Catalog

Mitsubishi Mr. Slim
Catalog

Mitsubishi HVAC products catalog (PDF Files)

Mitsubishi Hyper Heat for residential and commercial

Mitsubishi Hyper Heat Air conditioning & Heat pump systems
heating capacity down to -13˚ F.

Mitsubishi M Series Air Conditioners
Submittal / specifications / Information /
Single zone

M SY-A15NA & MUY-A15NA: Submittal
15,000 Btu wall mount, cooling only
MSY-A17NA & MUY-A17NA: Submittal
17,000 Btu wall mount, cooling only
MSY-A24NA-MUY-A24NA: Submittal
24,000 Btu wall mount, cooling only
MSY-GA24NA -MUY-GA24NA: Submittal
24,000 Btu wall mount, cooling only
MSZ-A09NA-MUZ-A09NA: Submittal
9,000 Btu wall mount, Heat Pump
MSZ-A12NA-MUZ-A12NA: Submittal
12,000 Btu, wall mount, Heat Pump
MSZ-A15NA-MUZ-A15NA: Submittal
15,000 Btu wall mount, Heat Pump
MSZ-A24NA-MUZ-A24NA: Submittal
24,000 Btu wall mount, Heat pump
MSZ-GA24NA-MUZ-GA24NA: Submittal
24,000 Btu wall mount, Heat Pump

M- Series MXZ-A Models
Multi-Zone, Inverter, Heating and cooling,
Ductless or ducted

MXZ-2A20NA / 2A20NA-1 / 2A20NA-2: Submittal
20,000 Btu, Dual-zone, combination with: wall mount,
concealed, Heat pump, heating and cooling.
MXZ-3A30NA / 3A30NA-1: Submittal
30,000 Btu, Tri-zone, combination with: wall mount,
concealed, Heat pump, Heating and cooling.
MXZ-4A36NA_Submittal
36,000 Btu, Quad-zone, combination with: wall mount,
concealed, heat pump, heating and cooling

M Series - Air conditioner & Heat pump
Multi-inverter systems: 2, 3, & 4 zones

Ductless Air conditioning systems

Ductless systems are a great solution they install quickly, moreover they’re not just Perfect solution for the whole

home, but also supplement to a home’s existing HVAC system.

Ductless technology is the fastest-growing segment in the U.S industry also the most common way To cool and

heat buildings around the world. Since this technology is still relative new to the American market, consumers

may not understand a lot about ductless systems. Pacific HVAC Air conditioner website provides useful

resources for homeowners also helps business learn about ductless systems.

Ductless systems benefits

Energy efficiency: Ductless systems are up to 40 percent more efficient than other type of HVAC systems.
Additional, since the systems are duct-free, duct loss is eliminated, further increasing energy saving.

Allergies: Ductless systems have highly advanced allergen-filtration, including washable filters that eliminate
contaminants from the air Because those systems require limited to no duct work, the potential for mold spore,
and dust accumulating in ducts is reduced or eliminated, additional improving air quality.

Eliminates hot and cold spots:

Ductless Air conditioning system’s zoning capability grants homeowners individual control over their comfort in

every room. Similarly as Individuals don’t expect to walk into their room, flip a light switch and have all the lights in

the house turn on at once, so they shouldn't stand for this from their HVAC systems either.

Easy installation: For both new construction and retrofits, Ductless split systems are simple to install, they
require little to no ductwork, minimizing demolition in retrofit. Their small footprint also compact size uses up less
space than traditional HVAC system.
