| Ductless Heat Pumps |
Ductless Air conditioners & Heat Pump - Ducted & Duct-free
Ductless and Ducted heating & cooling solutions for all your Construction needs
Ductless and Ducted heating & cooling solutions for all your Construction needs
Information & benefits
| Resindential |
| Commercial |
| Ductless Central Air Heat Pump |
Indoor units residential & commercial
Daikin Flat ceiling cassette
elegant ceiling cassette provide low
noise with four air flow directions, ability to
shout down one or two sides allow for easy
corner installation. Sound pressure as low
as 28db, requires 9.4" depth of ceiling,
simple installation with an easy to fit
decoration panel,
Modes range from 12,000 to 24,000 Btu.
elegant ceiling cassette provide low
noise with four air flow directions, ability to
shout down one or two sides allow for easy
corner installation. Sound pressure as low
as 28db, requires 9.4" depth of ceiling,
simple installation with an easy to fit
decoration panel,
Modes range from 12,000 to 24,000 Btu.

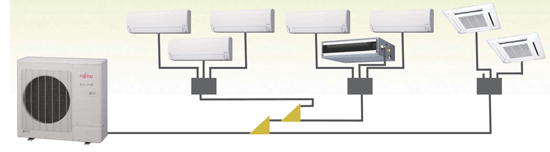

Fujitsu Floor, wall, ceiling universal mounted
unit, This ductless heat pump can easily
installed either on Floor, wall or on the
ceiling, slim and lightweight esthetic design,
powerful performance ideal for retail stores,
restaurants and bars. Models range from
18,000 Btu - 24,000 Btu.
unit, This ductless heat pump can easily
installed either on Floor, wall or on the
ceiling, slim and lightweight esthetic design,
powerful performance ideal for retail stores,
restaurants and bars. Models range from
18,000 Btu - 24,000 Btu.
Design flexibility
Wide variety and versatility, ranging from single zone designed up to 50 zones per system, integrated with single outdoor unit up to 360,000 Btu, Or modular
system enable up to 2000 zones from a single networked PC, available in 208/230V and 1460V capabilities
the residential system powered by 110 or 220V, and 240 or 460V (3-phase) for commercial systems
Wide variety and versatility, ranging from single zone designed up to 50 zones per system, integrated with single outdoor unit up to 360,000 Btu, Or modular
system enable up to 2000 zones from a single networked PC, available in 208/230V and 1460V capabilities
the residential system powered by 110 or 220V, and 240 or 460V (3-phase) for commercial systems
Ductless Heat Pump: Impressive performance and capabilities
The cooling & heating inverter heat pump systems integrated with new technology, enable to provide up to 100% heating capacity at 5 ºF
outdoor, and 75% heating at -13 ºF, setting a new standard in heat pump performance.
The cooling & heating inverter heat pump systems integrated with new technology, enable to provide up to 100% heating capacity at 5 ºF
outdoor, and 75% heating at -13 ºF, setting a new standard in heat pump performance.
Ductless split heat pump for residential, commercial and industrial applications,
Split heat pump is one system that combine Air conditioning & heating, provide high efficient heating & cooling from one source.
Heat pump are currently the most efficient indoor comfort systems in the market: innovative technology with clear benefit for you and the environment.
Split heat pump is one system that combine Air conditioning & heating, provide high efficient heating & cooling from one source.
Heat pump are currently the most efficient indoor comfort systems in the market: innovative technology with clear benefit for you and the environment.
Mitsubishi City Multi -Y series heat pump outdoor units are flexible enough to cool or heat up to 50 individual zones, available in both 208/230V and
460V up to 30 ton for different applications.
460V up to 30 ton for different applications.
Daikin heat pump VRV III (RXYQ) is the 7th generation of the original VRV, completely re-engineered; the new inverter compressor
delivers improved efficiency and performance. Up to 41 indoor unit can be operated from a single outdoor units, longest pipe length in
product class (up to 3,280 ft), available in both 208/230V and 460V 3Ph/60Hz
delivers improved efficiency and performance. Up to 41 indoor unit can be operated from a single outdoor units, longest pipe length in
product class (up to 3,280 ft), available in both 208/230V and 460V 3Ph/60Hz
Ductless Heat pumps
| www.pacificairconditioner.com HVAC Contractor service NY & NJ Located in Englewood NJ, 07631 |
| Pacific HVAC Air Conditioner Tel: 201-266-0049 Email :service@pacificairconditioner.com |
Residential Air conditioners heat pump up to 8 zones
A variety of styles and sizes, residential heat pump ranging from single zone up to 8 zones. Ductless Heat pump systems are relatively easy to install in
average it takes 2 - 3 hours to install wall mounted single zone system, and up to 8 hours Quad zone include refrigerant lines and slim duct cover, wall mount
brackets for the outdoor unit, wiring for power and controls.
Indoor unit’s choices: Wall mount, floor, concealed ceiling, flat ceiling cassette and ceiling suspended unit.
All heat pump systems provide "heating and cooling", optimized R-410A refrigerant.
A variety of styles and sizes, residential heat pump ranging from single zone up to 8 zones. Ductless Heat pump systems are relatively easy to install in
average it takes 2 - 3 hours to install wall mounted single zone system, and up to 8 hours Quad zone include refrigerant lines and slim duct cover, wall mount
brackets for the outdoor unit, wiring for power and controls.
Indoor unit’s choices: Wall mount, floor, concealed ceiling, flat ceiling cassette and ceiling suspended unit.
All heat pump systems provide "heating and cooling", optimized R-410A refrigerant.
Ductless Air conditioners heat pumps offer an energy efficient alternative to standard air conditioners and furnace. Heat pumps use electricity to move heat
from a cool space into a warm, they move heat rather than generate heat, heat pumps can provide up to 4 times the amount of energy they consume. Easy,
flexible installation, intelligent energy usage, independent zoning control, multiple choices for indoor units - wall, floor, ceiling suspended and flat ceiling
cassette. Inverter technology design flexibility to provide maximum comfort, year- round energy savings
from a cool space into a warm, they move heat rather than generate heat, heat pumps can provide up to 4 times the amount of energy they consume. Easy,
flexible installation, intelligent energy usage, independent zoning control, multiple choices for indoor units - wall, floor, ceiling suspended and flat ceiling
cassette. Inverter technology design flexibility to provide maximum comfort, year- round energy savings
Heat pump - Effective energy usage
Heat pumps is an air conditioner device, provide heating in the winter and cooling in summer, highly efficient thanks to innovative inverter technology,
environmentally friendly R-410A refrigerant, the system adjusts itself precisely to the level needed to maintain consistently comfortable indoor environment. The
versatility and variety of applications are virtually unlimited, they are an excellent choice for almost any heating and cooling situation, Town house, apartments,
retail stores, restaurants, bars, medical-center, schools, universities. Daikin VRV and Mitsubishi City multi high performance modular systems ideal for larger
projects and industrial use.
Learn more about heat pumps and energy efficient
Heat pumps is an air conditioner device, provide heating in the winter and cooling in summer, highly efficient thanks to innovative inverter technology,
environmentally friendly R-410A refrigerant, the system adjusts itself precisely to the level needed to maintain consistently comfortable indoor environment. The
versatility and variety of applications are virtually unlimited, they are an excellent choice for almost any heating and cooling situation, Town house, apartments,
retail stores, restaurants, bars, medical-center, schools, universities. Daikin VRV and Mitsubishi City multi high performance modular systems ideal for larger
projects and industrial use.
Learn more about heat pumps and energy efficient
Residential AC & heat pumps systems,
available in single split, multi split and VRV-S,
Multi split systems can serve from two to four
rooms using only one outdoor unit, allows
individual control in each room. The VRV -S
system can serve up to 8 rooms, individual
zones capabilities.
Brands: Fujitsu, Daikin AC, Sanyo,
Mitsubishi, Friedrich, Carrier,
available in single split, multi split and VRV-S,
Multi split systems can serve from two to four
rooms using only one outdoor unit, allows
individual control in each room. The VRV -S
system can serve up to 8 rooms, individual
zones capabilities.
Brands: Fujitsu, Daikin AC, Sanyo,
Mitsubishi, Friedrich, Carrier,
Single zone choices: wall mounted, floor,
ceiling suspended, concealed ceiling and flat
ceiling cassette.
Models ranging from 7,500 Btu up to 48,000
Btu, efficiency up to 26 SEER.
ceiling suspended, concealed ceiling and flat
ceiling cassette.
Models ranging from 7,500 Btu up to 48,000
Btu, efficiency up to 26 SEER.
DAIKIN Multi split Systems
2- zone and 4- zones multi-split systems are
able to serve 2, 3 or 4 zones from 115
possible combinations, choices include: all
wall mount, all slim duct units or a
combination of both. With energy efficiency
up to SEER 19.5 and HSPF 9.5.
2- zone and 4- zones multi-split systems are
able to serve 2, 3 or 4 zones from 115
possible combinations, choices include: all
wall mount, all slim duct units or a
combination of both. With energy efficiency
up to SEER 19.5 and HSPF 9.5.
Daikin 8 zone Multi split
The VRV-S allows for heating and cooling up
to eight zones, using single outdoor unit.
Unlike regular multi split system that required
two refrigerant lines for each indoor unit, the
VRV-S technology design to operates with
only two refrigerant lines, connected to all
indoor units through Refnet Joint, dramatically
reduce cost, materials and installation time,
outstanding heating and cooling
performance, Quite operation as low as 28db
and flexibility of installation and use.
to eight zones, using single outdoor unit.
Unlike regular multi split system that required
two refrigerant lines for each indoor unit, the
VRV-S technology design to operates with
only two refrigerant lines, connected to all
indoor units through Refnet Joint, dramatically
reduce cost, materials and installation time,
outstanding heating and cooling
performance, Quite operation as low as 28db
and flexibility of installation and use.
Design flexibility, The VRV-S allows all type of
indoor unit connection: wall, floor, ceiling
suspended, concealed unit, or flat ceiling
cassette at the same time, variety indoor unit’s
types and options to meet your design needs.
indoor unit connection: wall, floor, ceiling
suspended, concealed unit, or flat ceiling
cassette at the same time, variety indoor unit’s
types and options to meet your design needs.

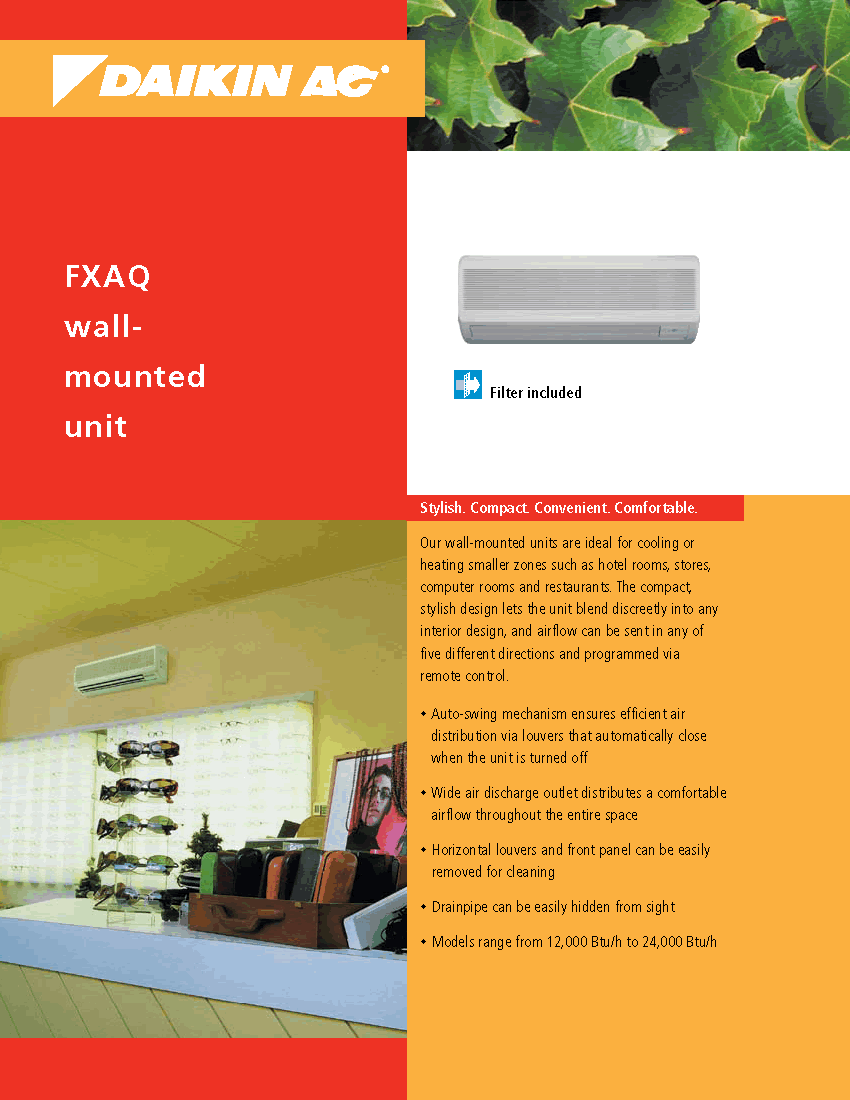

Wall mounted (single zone)
eliminate the need for ductwork, mount high on
the wall deliver heating and cooling, wireless or
wired remote, Models range from 9,000, 12,000,
15,000, 18,000, 24,000, 30,000, 36,000 Btu.
Efficiency: 14 - 26 SEER
Average installation time: 3 Hours
Application: residential & light commercial.
eliminate the need for ductwork, mount high on
the wall deliver heating and cooling, wireless or
wired remote, Models range from 9,000, 12,000,
15,000, 18,000, 24,000, 30,000, 36,000 Btu.
Efficiency: 14 - 26 SEER
Average installation time: 3 Hours
Application: residential & light commercial.

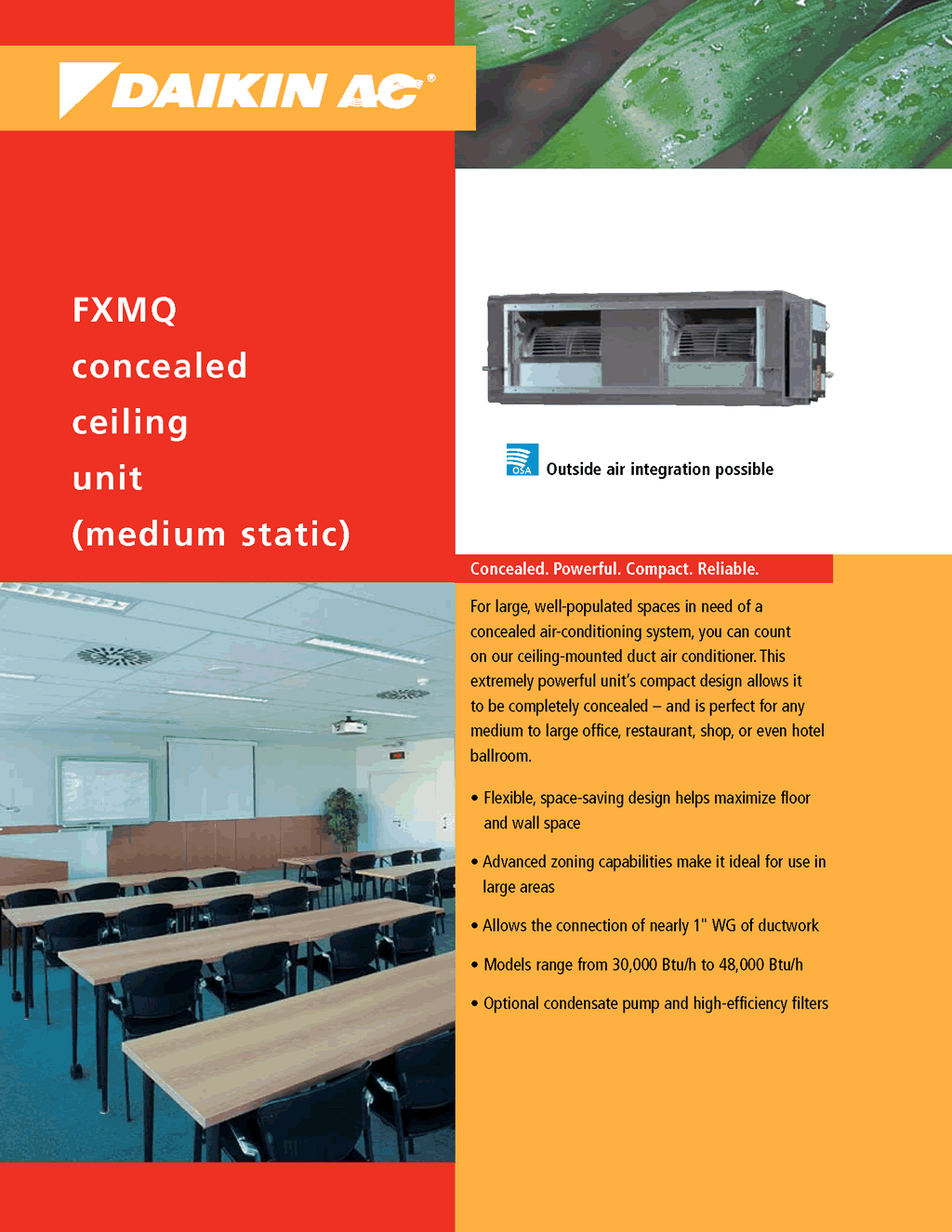

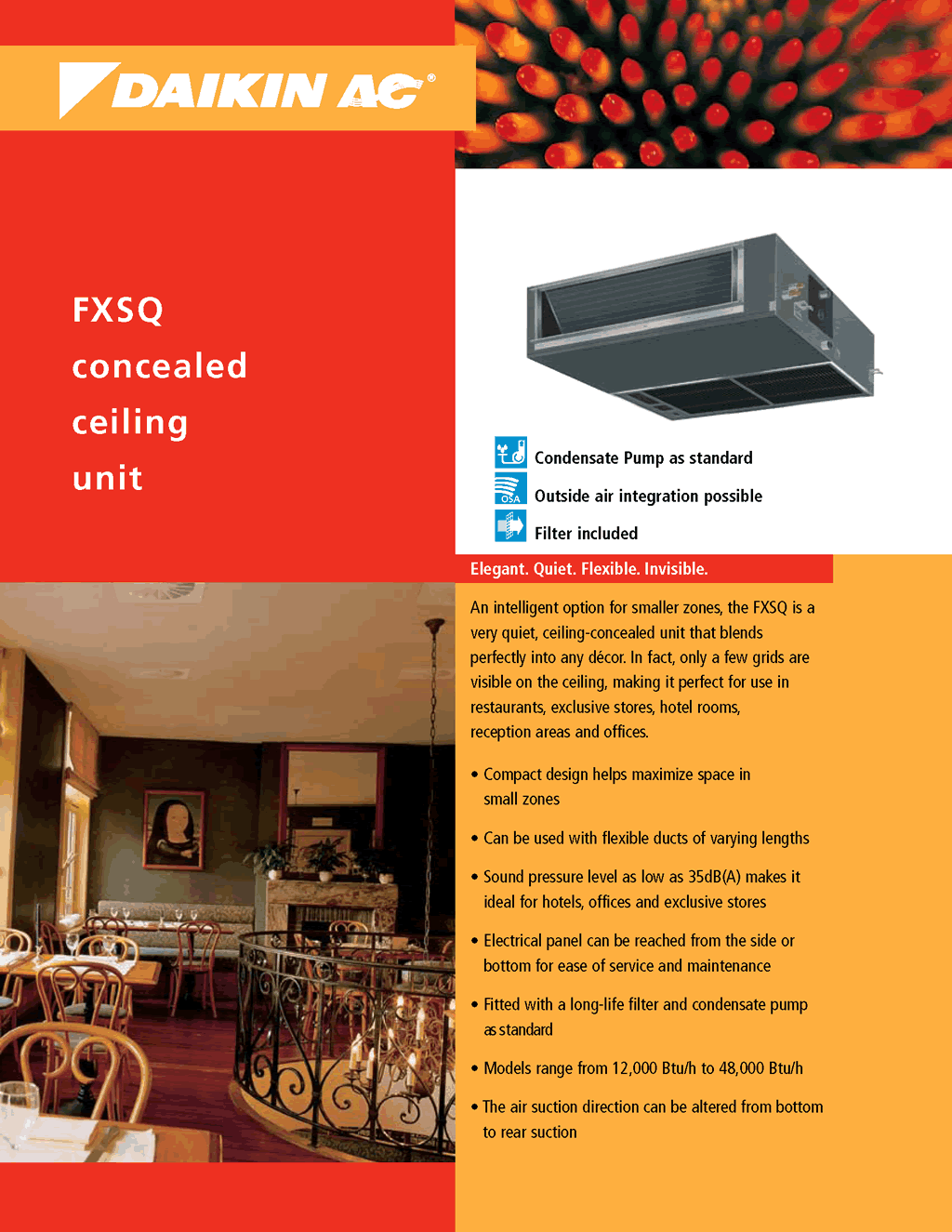

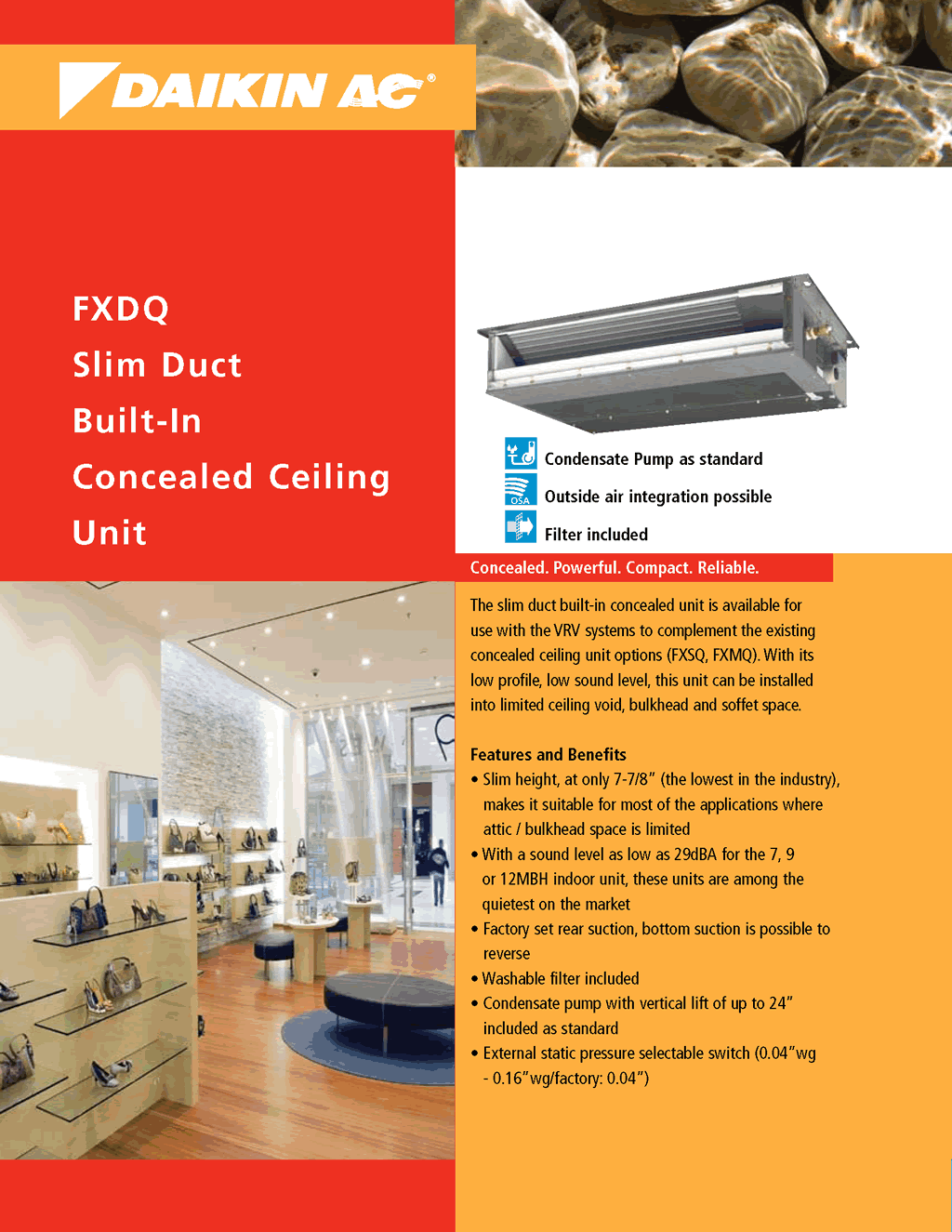

Concealed ceiling (hidden) unit
Used with multi split and VRV-S system only,
however the VRV-S use its own models.
Concealed ceiling are mounted above a ceiling
or in a frame enclosure bellow a ceiling, so only
grilles show for a clean
look. Direct flow or require minimal ductwork.
for Multi split models range from 9,000 - 18,000
Btu and 7,500 - 48,000 Btu with VRV-S.
Concealed ceiling are hidden units, connected
through refrigerant lines to the outdoor unit same
as any type of indoor unit, however concealed
unit can be attached to ductwork in case of
limited space, and also can heat and cool two
rooms using short ductwork eliminate the need
to install additional unit.
Concealed ceiling are esthetically design for
clean look, yet provide high efficiency heating and
cooling solution for home and office.
Used with multi split and VRV-S system only,
however the VRV-S use its own models.
Concealed ceiling are mounted above a ceiling
or in a frame enclosure bellow a ceiling, so only
grilles show for a clean
look. Direct flow or require minimal ductwork.
for Multi split models range from 9,000 - 18,000
Btu and 7,500 - 48,000 Btu with VRV-S.
Concealed ceiling are hidden units, connected
through refrigerant lines to the outdoor unit same
as any type of indoor unit, however concealed
unit can be attached to ductwork in case of
limited space, and also can heat and cool two
rooms using short ductwork eliminate the need
to install additional unit.
Concealed ceiling are esthetically design for
clean look, yet provide high efficiency heating and
cooling solution for home and office.
VRV-S Ceiling suspended
Slim, elegant design, less than 8" great
fit for wide air openings provide a
comfortable air flow and silent stream fan.
Models range from 12,000 - 36,000 Btu.
Slim, elegant design, less than 8" great
fit for wide air openings provide a
comfortable air flow and silent stream fan.
Models range from 12,000 - 36,000 Btu.

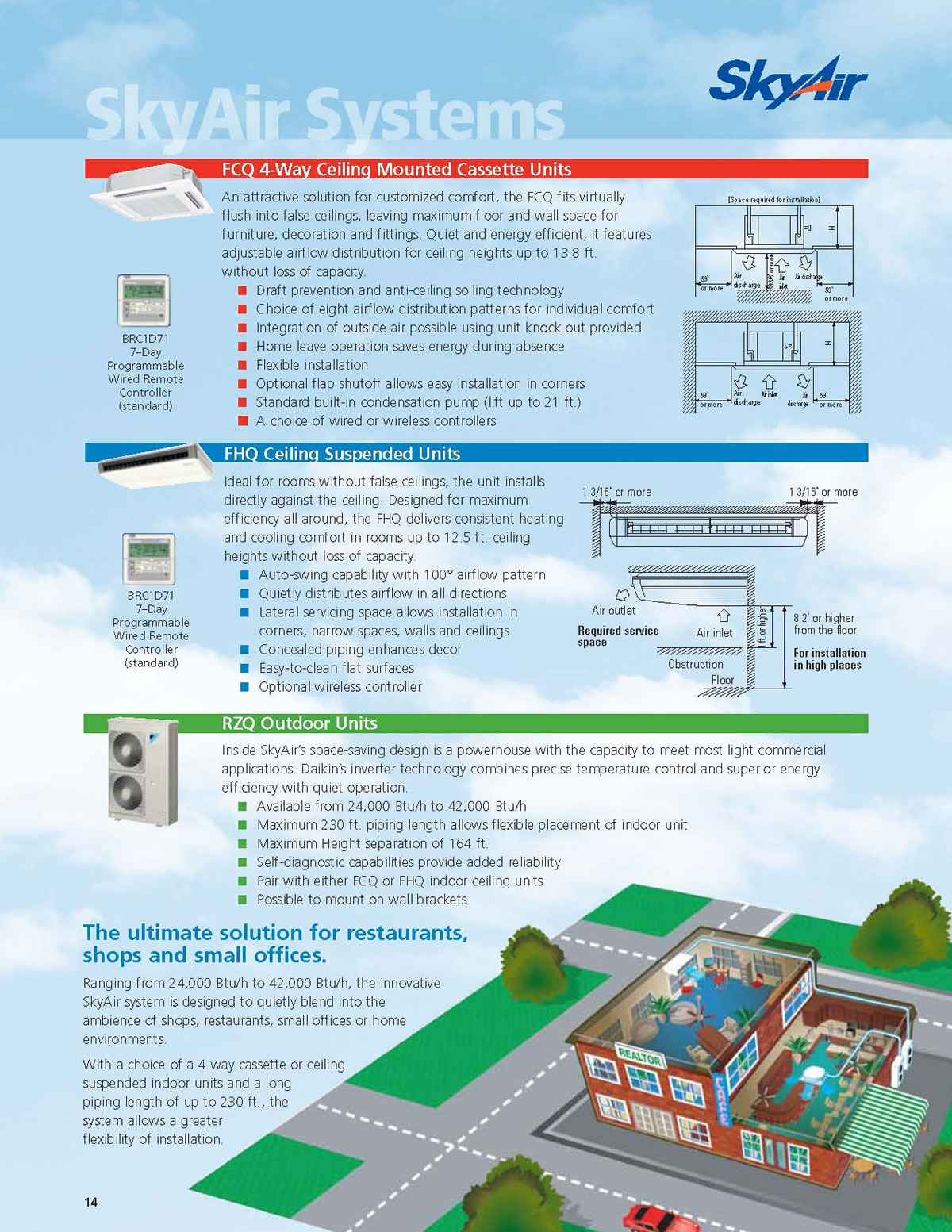

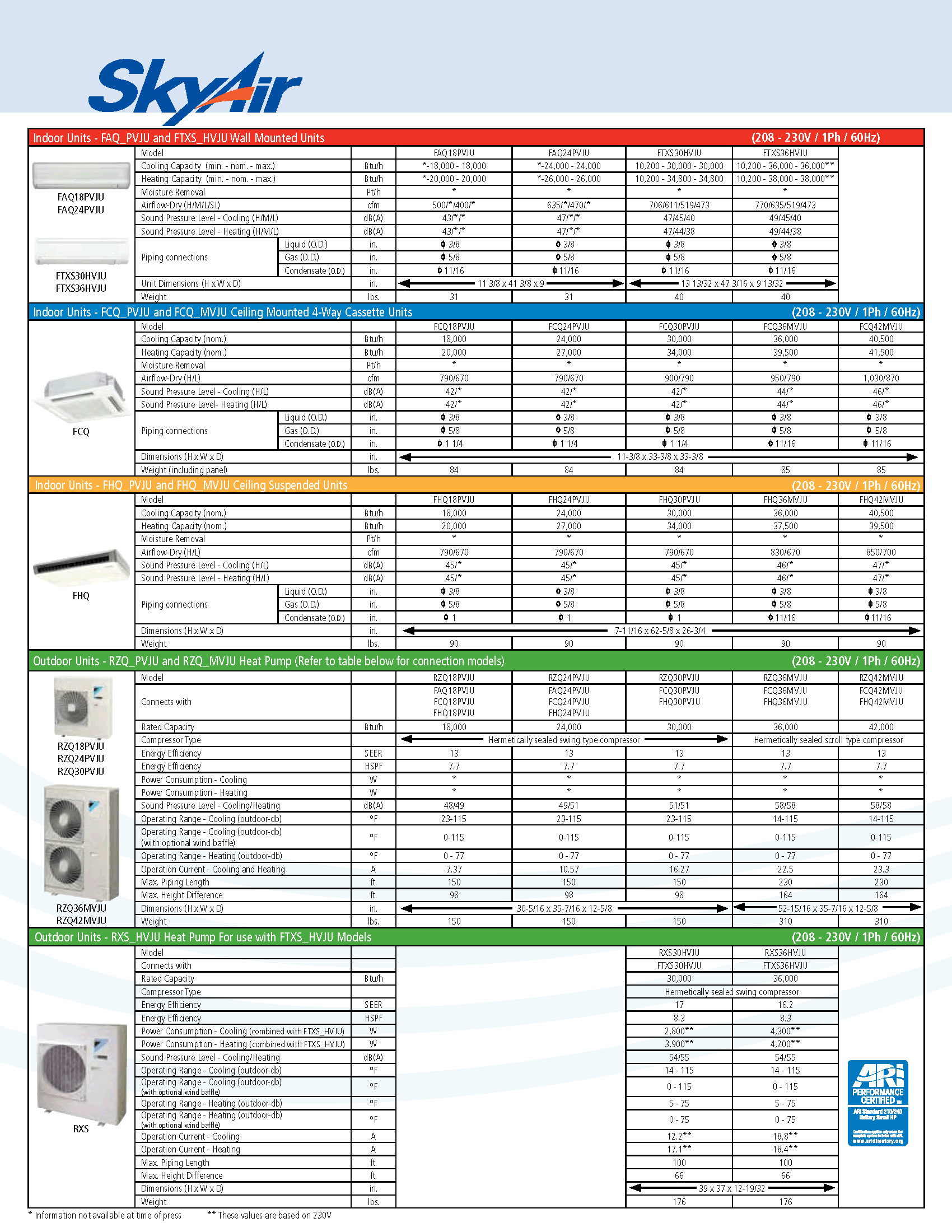

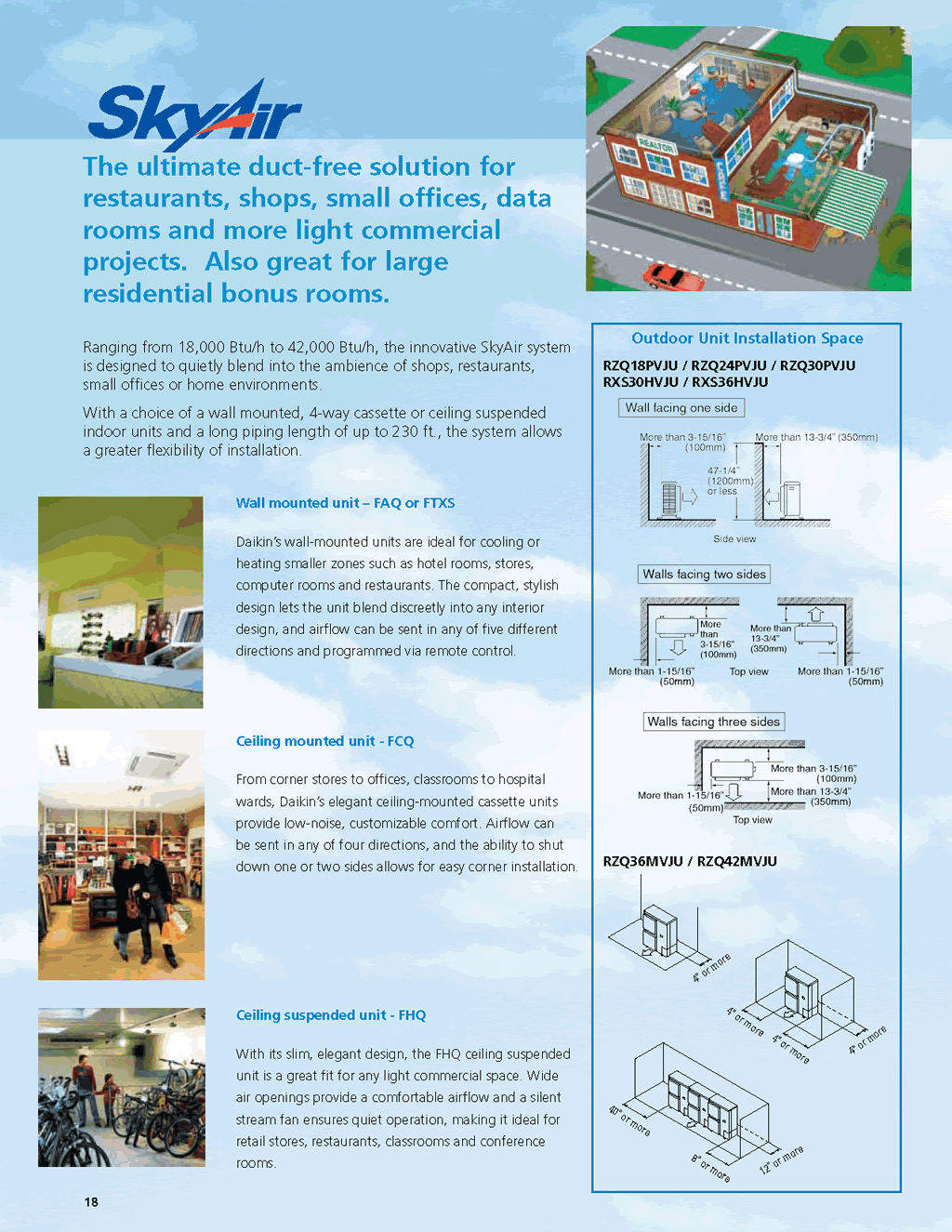

Daikin Skyair Ceiling suspended
available in: 18,000, 24,000, 30,000,
36,000 and 42,000 Btu
available in: 18,000, 24,000, 30,000,
36,000 and 42,000 Btu
Daikin Floor standing
(to be used with VRV-S)
Floor or wall mounted can easily be
freestanding or installed along a perimeter
wall
Ideal for installation beneath a window,
requires minimal installation space
Models range from 12,000 Btu to 24,000 Btu.
(to be used with VRV-S)
Floor or wall mounted can easily be
freestanding or installed along a perimeter
wall
Ideal for installation beneath a window,
requires minimal installation space
Models range from 12,000 Btu to 24,000 Btu.
Daikin VRV III new design for large buildings, it utilizes
the latest advances in refrigeration and air-conditioning
technology, new inverter compressor systems delivers
improved efficiency and performance, independent
zoning control with power choice of
460V/3Ph/60Hz or 208-230V/3Ph/60Hz
the Heat Pump or Heat Recovery configurations power
up to 20-Ton, Capacity from a single piping network, the
System also allows up to 41 indoor fan coils
Units, a 200% connection index,
the latest advances in refrigeration and air-conditioning
technology, new inverter compressor systems delivers
improved efficiency and performance, independent
zoning control with power choice of
460V/3Ph/60Hz or 208-230V/3Ph/60Hz
the Heat Pump or Heat Recovery configurations power
up to 20-Ton, Capacity from a single piping network, the
System also allows up to 41 indoor fan coils
Units, a 200% connection index,
Skyair The ultimate duct-free solution for
restaurants, shops, small offices, data rooms and
more light commercial projects. Also great for large
residential bonus rooms.
restaurants, shops, small offices, data rooms and
more light commercial projects. Also great for large
residential bonus rooms.
Single zone: Daikin SkyAir heat pump choices, Wall
mounted, 4-way cassette and ceiling cassette,
capacities range from 18,000 Btu up to 42,000 Btu,
efficiency up to 17 SEER, Max piping length 230 ft, Max
high difference 164 ft,Low ambient cooling operation
down to 0ºF, operating range-heating (outdoor-db)
0ºF. Designed for use in shops, restaurants and
small office.
mounted, 4-way cassette and ceiling cassette,
capacities range from 18,000 Btu up to 42,000 Btu,
efficiency up to 17 SEER, Max piping length 230 ft, Max
high difference 164 ft,Low ambient cooling operation
down to 0ºF, operating range-heating (outdoor-db)
0ºF. Designed for use in shops, restaurants and
small office.
Daikin VRV III RXYQ Features
Multi zone heat pump system
VRV is an applied air conditioning system that
distributes refrigerant to the fan coil units in the
conditioned spaces, rather than water.
High efficiency variable speed "inverter" compressor
coupled with inverter fan motor for superior system part
load performance.
The compressor capacity modulated automatically to
maintain a constant suction pressure, while varying the
refrigerant volume to deliver precisely the needs of the
cooling and heating load.
Design flexibility wall mounted, floor, concealed ceiling,
ceiling suspended and flat ceiling cassette.
Capacities: outdoor units, 6, 8, 10, 12, 14, 16, 18 or 20
ton, indoor units 7,500, 9, 12, 18, 24, 30, 33, 36, 42, and
48,000 Btu.
Continuous operation 0°F DB (-5°F WB) – 64°F DB (60°
F WB) in heating mode and 23°F DB – 110°F DB in
cooling mode
longest pipe lengths in product class (up to 3,280 ft)
Multi zone heat pump system
VRV is an applied air conditioning system that
distributes refrigerant to the fan coil units in the
conditioned spaces, rather than water.
High efficiency variable speed "inverter" compressor
coupled with inverter fan motor for superior system part
load performance.
The compressor capacity modulated automatically to
maintain a constant suction pressure, while varying the
refrigerant volume to deliver precisely the needs of the
cooling and heating load.
Design flexibility wall mounted, floor, concealed ceiling,
ceiling suspended and flat ceiling cassette.
Capacities: outdoor units, 6, 8, 10, 12, 14, 16, 18 or 20
ton, indoor units 7,500, 9, 12, 18, 24, 30, 33, 36, 42, and
48,000 Btu.
Continuous operation 0°F DB (-5°F WB) – 64°F DB (60°
F WB) in heating mode and 23°F DB – 110°F DB in
cooling mode
longest pipe lengths in product class (up to 3,280 ft)
Heat pumps are more efficient than some other forms of
heating because heat pumps do not actually create heat - they
just move it from one place to another. For example, the output
of an efficient 10 EER heat pump is triple that of an electric
heater.In some climates a heat pump may handle your heating
and cooling needs more efficiently then
heating because heat pumps do not actually create heat - they
just move it from one place to another. For example, the output
of an efficient 10 EER heat pump is triple that of an electric
heater.In some climates a heat pump may handle your heating
and cooling needs more efficiently then
Inverter technology ?
Inverter technology can be compared to the technology in a car: "the
harder you push the accelerator, the faster you go."
An inverter unit will gradually increase the compressor speed
based on the capacity needed to cool down or heat up the room
A system without inverter technology can be compared to turning on
or off lamp. Turning on this type of unit will start to run on full load
Inverter technology can be compared to the technology in a car: "the
harder you push the accelerator, the faster you go."
An inverter unit will gradually increase the compressor speed
based on the capacity needed to cool down or heat up the room
A system without inverter technology can be compared to turning on
or off lamp. Turning on this type of unit will start to run on full load
Advantages of the inverter technology
- The system operates at the required capacity, delivering the
amount of cooling or heating to maintain the desired comfort
condition. - Start up time is reduced by one-third (compared to normal
on/off units.) - Avoids cycling operation of the compressor, thus reduced
costly current (amp) peaks. - Minimizes temperature fluctuations.
- Reduces the energy consumption by one-third (compared to
normal on/off units).
Variable speed compressor
All Daikin AC systems employ inverter " variable speed" compressors
and non-ozone depletion potential R-410A refrigerant
All Daikin AC systems employ inverter " variable speed" compressors
and non-ozone depletion potential R-410A refrigerant
Revolutionary technology
for precise temperature control that constantly readjust itself to the
environment and changing occupancy.
for precise temperature control that constantly readjust itself to the
environment and changing occupancy.
